hot dipped galvanized steel PPGI coil from China manufacturer - Henan Jianhui Construction Machinery CO.,LTD

Price:	820.0~1200.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: According to the customer r...

Standard:: AISI,ASTM,BS,DIN,GB,JIS

Surface Treatment: Coated

Technique:: Cold Rolled

Application:: Other

Thickness:: 0.20-1.2mm

Production Capacity: 10000 Metric Ton/Metric Ton...

Delivery Date: 20-30 days

Width: 914mm-1250mm

Coil Weight: :4MT-10MT,

Brand Name:: JIANHUI

Type: Steel Coil

Grade: hot dipped galvanized steel

1) CGCC, CGCH
2)0.17-0.8mm
3)factory audit, ISO9001 QC
4)MOQ: 25 tons
The surface is normal spangle or polished

*he information about prepainted galvanized steel coils*
				Product Name	Prepainted galvanized steel coils/PPGI
						Standard	JISG3312, ASTMA755M, GB/T12754, Q/CHQ 2003
Grade	TDC51D,AZ150,SGCC,CGCC,SPCC195L,TSGCC,CCGI
		Thick	0.14mm--2.00mm
Painting/coating:	5-25um (Polyester / Expory / SMP / PVDF )
		Width	400mm--1500mm

Zinc coating	40-180g/m2
SurfaceTreatment	Chromated / Unchromated Treatment, Oiled or Resin Coated (Anti Finger Print)
Surface Finish	Regular Spangle, MiniSpangle, SkinPassed, Extra Smooth and Galvannealed

Substrate Bate classifaction:

Cold-rolled substrate color coated coil
Hot dipped color coated coil
Hot dipped aluzinc color coated coil	Coating 5% aluzinc
Hot dipped aluzinc color coated coil	Coating 55% aluzinc
Electro-galvanized color coated coil	Printed color sheet
Others	Mental pattern color sheet

Our pgi is made by cold rolled steel sheet and galvanized steel sheets as baseplate, through

the surface pretreatment (degreasing, cleaning, chemicalconversion processing), coated by the

method of continuous coatings and after roasting and cooling.

Specifications:

Base material: hot dipped galvanized steel coil DX51D+Z EN10142 standard. SGCC JIS G3302 or ASTM A653 standard

Standard:JIS G3312 CGCC, EN10143, ASTM A792

The combining force between the galvanized steel and the paint is very strong

The surface is normal spangle or polished
Thickness:0.16-0.65mm

Width:1000-1250mm

Zinc coating: 60-180g/m²

Tensile strengthis over 30kg/mm2

Color: RAL No. or customers' sample color

Lacquer of painting: According to customers' need

Painting: Topside: 5microns primer+15microns polyester, Backside: 5-8microns primer epoxy

Coil ID: 508mm
Coil weight: 3-7MT

Packing:Standard exporting seaworthy packing or according to customers' requirement

Price Terms:FOB, CFR, CIF

Note: special requirement can be requested, small order can be negotiated
2. Application:

Nowadays, it has become the most perfect building material in construction (sandwich panel, roofing tile), transportation, manufacture, light industry, office furniture, household electric appliances, food package, and other areas all over the world.

3. Quality certificate: ISO9001

We have been using a set of production technology and advanced craft from Japan for our production line. We also hired some relevant experts to our factory to provide us very high technology and experience and production skills. We insist quality and safe are first, so that we can supply our customers with good quality and satisfactory products.

4. We have already exported our product to East and Southern Asia, Mid East, UK, Russia, Ukraine, Portugal, Greece and other European countries and Brazil, Venezuela and other southern American countries.

5. We are manufacturer of prepainted galvanized steel coil, hot dipped galvanized steel coil and tinplate in China.

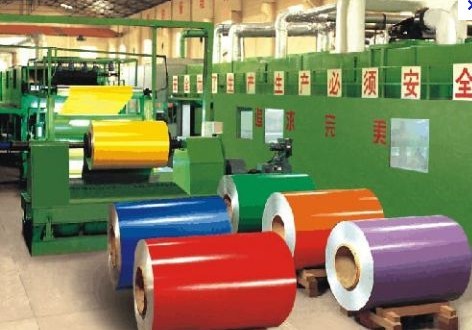

jianhui color steel PPGI coil
