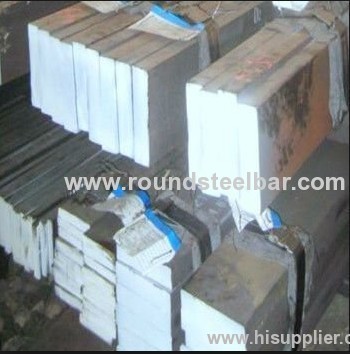

ASTM H11 Extrusion die forged tool steel flat bar

Price:	1500.0~3000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ASTM H11

Production Capacity: 100000 Ton/Tons per Year

Delivery Date: 20-30 days

Processing Type: Casting

Model Number:: 20mm-300mm*200mm-800mm

application: Tool Steel Bar

Alloy Or Not:: Is Alloy

Technique:: Forged

Means of Transport: Ocean

Packing: According to the customer r...

Standard:: AISI,ASTM,BS,DIN,GB,JIS

Dimensions:: 20mm-300mm*200mm-800mm

Place of Origin:: Henan, China (Mainland)

Special Use:: Mold Steel

Grade:: 1.2343/H11/SKD6/BH11/4Cr5Mo...

1)1.2343 tool steel flat bar
2)Thickness:20mm-300mm or as your requirements
3)Width: 200mm-800mm
4)ISO 9001:2008
Payment term T/T, L/C

Chemical Composition (%)

DIN1.2343

C	Si	Mn	P	S	Cr	Mo	V
0.33-0.41	0.80-1.20	0.25-0.50	≤0.030	≤0.020	4.80-5.50	1.10-1.50	0.30-0.50

ASTM: H11

C	Si	Mn	P	S	Cr	Mo	V
0.33-0.43	0.80-1.20	0.20-0.50	≤0.030	≤0.030	4.75-5.50	1.10-1.60	0.30-0.60

Specification

Thickness: 20mm-300mm or according to your requirements

Width: 200mm-800mm or according to your requirements

Characteristics

DIN1.2343/ ASTM H11 / SKD6 / 4Cr5MoVSi alloy tool steel

1) High heat resistance hot-work tool steel.

2) Excellent toughness and scalability in kinds of directions.

3) High thermal fatigue resistance and abrasive resistance.

4) Nitriding.

5) Good polishability.

6) Good dimensional stability.

7) Good hardability.

8) Better isotropy than regular smelting steel.

Ultrasonic inspection

ASTM A388-FBH max.3mm(1/8inch) / SEP 1921-test group3-classE/e or as your requirements

] Application

DIN1.2343/ ASTM H11 / SKD6 / 4Cr5MoVSi alloy tool steel

1) Diecasting(mold, insert blocks,mold core, spure sperader, nitride thimble).

2) Extrusion die(mold, die backer,choke blocks).
