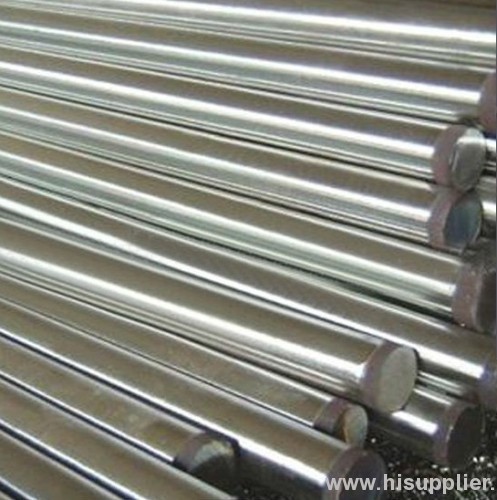

51Crv4 cold drawn spring steel bar from China manufacturer - Henan Jianhui Construction Machinery CO.,LTD

Price:	1100.0~1500.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 51Crv4

Production Capacity: 2000Metric Tons per Month

Delivery Date: 20-30 days

Standard:: Henan, China (Mainland)

Dimensions:: 2-650mm

Application:: spring pars,spring

hot rolled/ cold drawn/ forged:: black/ bright

Packaging Details: bulk

Means of Transport: Ocean

Packing: bulk

Grade:: spring steel 51crv4

Type:: Spring Steel Bar

Brand Name: jianhui

Model Number:: jh-50022

Port:: tianjin

steel grade: DIN 51Crv4 spring steel
size:2.0-30mm wire/ rod cold drawn, 20-260mm hot rolled
ISO quality
profession factory

Commodity	Alloy Steel Round Bar
Material	DIN 51CrV4
Standard	GB	JIS	ASTM/ASME	DIN
Standard	50CrVA	G4801-2005/SUP10	A29/A29M-04//6150	EN10089-2002
Chemical Composition	C	Cr	V	Si
Chemical Composition	0.46~0.54	0.80~~1.10	0.10~0.20	0.17~0.37
Mechanical Properties	Tensile strength	Yield point	Elongation
Mechanical Properties	1274MPa	1127MPa	10%
Size/Dia	φ4.0mm-φ800mm
Length	4000mm-7000mm, as customers' request
Surface	Black/Bright, or as customers' request
manufacture	Hot Rolled/Cold Drawn/Forged
Packing	Packed in bundles with standard export sea-worthy package
Delivery Time	Within 15 working days, according to customers' quantities
Quality	High Quality.SGS inspection is accepted if needed

Material Name: 51CrV4(1.8159) spring steel
51Crv4 spring steel cold drawn/ hot rolled/ forged

executive standard:EN 10089-2002

1 Characteristics and application scope:

Good mechanical properties and processing properties, its quench-hardening ability is higher, to join the steel grain refinement of vanadium, reduce the sensitivity of overheating, improving the strength and toughness, high fatigue strength, and higher than the yield, but the weldability poor, cold plastic deformation due to the low. Is a kind of more senior spring, used as a large section of the high load important and working temperature < 300 spring °C valve spring, the pistons spring, the relief valve spring
51Crv4 spring steel cold drawn/ hot rolled/ forged
